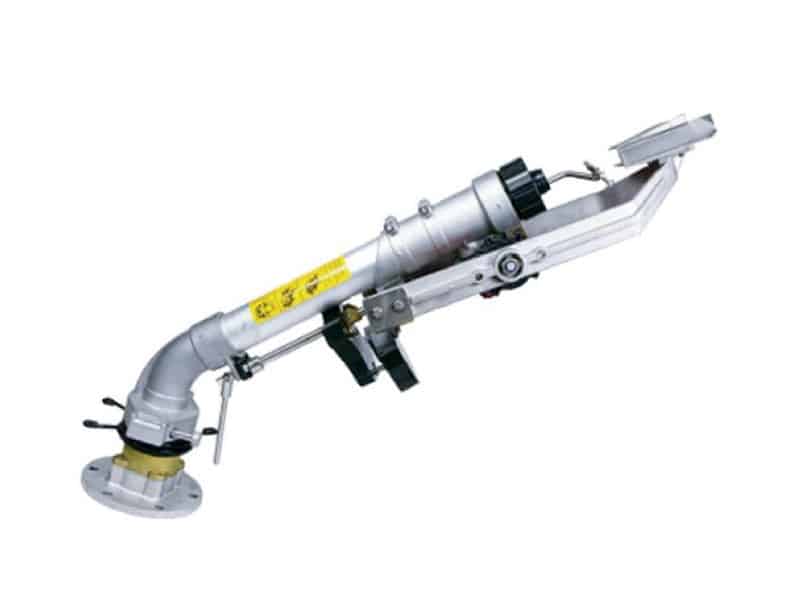

HydroPulse HYP50 44°rocker arm gun

HydroPulse Gun Sprinkler, angle 44° is the best fogging dust reduction and dust depression sprinkler.

Features
Specification

Features

HYP50DC, TrusKa rocker arm gun sprinkler HydroPulse 50 44° is a middle-large volume gun, that maximizes throw, optimized distribution, and increases the resistance to corrosion and wear.

Adaptable for: coal yards, power plants, railroad yards, coal mines, coal washing plants, steel plants, stockyards, docks, water spraying trucks lanes of ore and coal yard, etc.

360° Smart rotation, full-circle/sector spray options with auto slow-rotation for even coverage, No blind spot.
High-pressure atomization and long-range spray dust suppression, with adjustable water crusher boosts mist efficiency, >85% suppression.
Wind-resistant & Heavy-duty, adopting reinforced seals and anti-corrosion materials, ideal for coal/steel, industry plants.
Customizable spray with Interchangeable nozzles covers 30-100m range. can supply flexible solutions.
Water & Energy Saving, 30% less water usage, meets EPA standards.

Specification

Water inlet diameter: 50mm
Nozzle diameter: 14~30mm
Working pressure: 3.0~8.0bar
Flow rate: 15.9~101.6 m3/h
Spray distance: 29~51m
Interface mode: Flange or thread connection
Angle: 44°
Weight: 6kg
Product size: 87*25*24cm

HYP50DC
Nozzle Dia. (mm)	Pressure (bar)	Spray distance (m)	Flow rate (m3/h)
20	3.0	31.3	37
	4.0	36.2	41
	5.0	40.5	45
	6.0	44.4	48
22	3.0	37.3	38
	4.0	43.2	43
	5.0	48.3	47
	6.0	52.9	50
24	3.0	43.9	42
	4.0	50.7	47
	5.0	56.7	52
	6.0	62.2	55
26	3.0	50.9	44
	4.0	58.8	51
	5.0	65.7	56
	6.0	72.1	58
28	3.0	58.4	46
	4.0	67.6	52
	5.0	75.6	57
	6.0	82.8	60
30	4.0	76.9	53
	5.0	85.9	58
	6.0	94.2	62
	7.0	101.6	65
